UML diagrams

Five diagrams visualize the BeCoMe implementation from different angles.

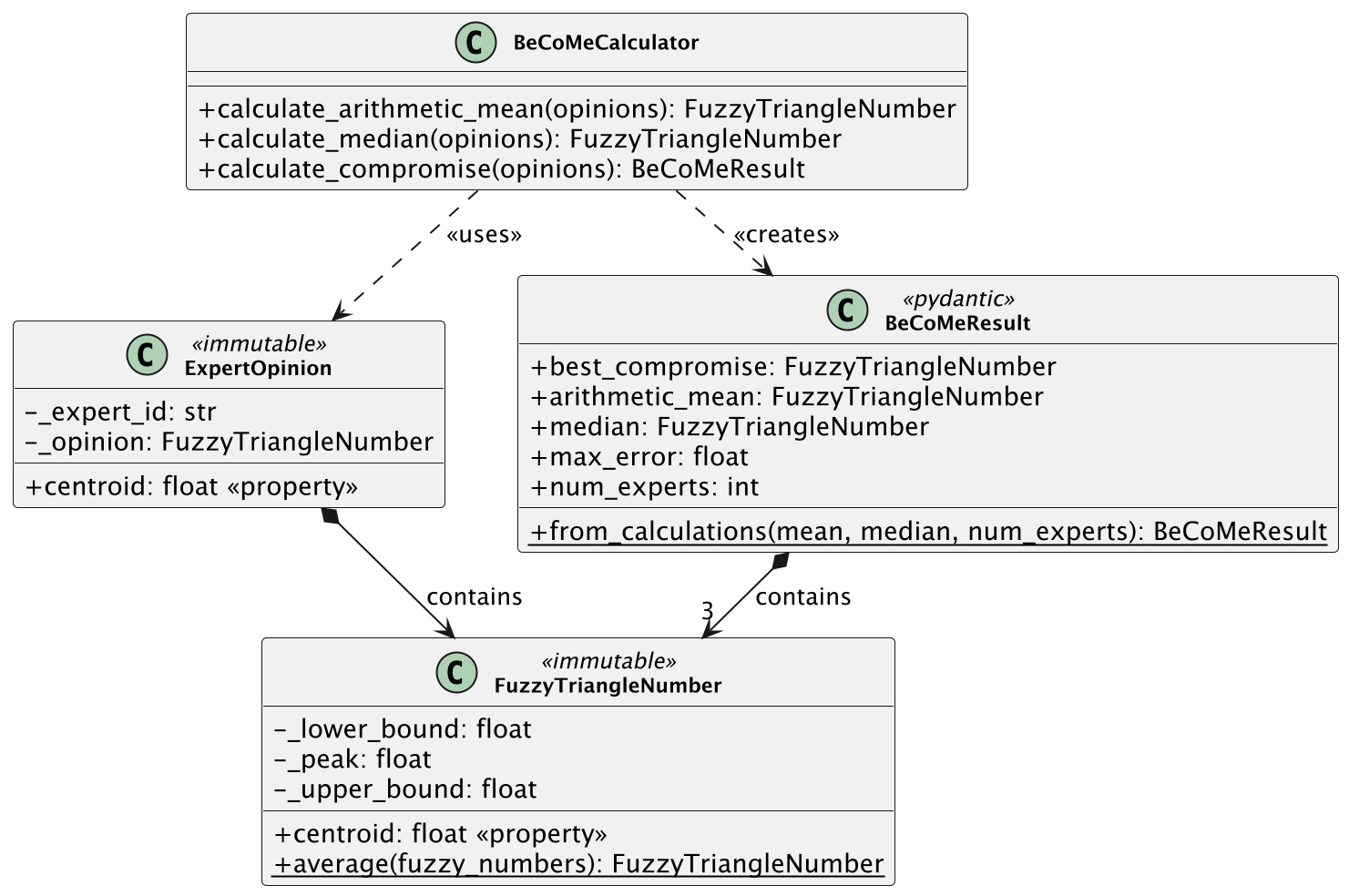

Class diagram

Class Diagram

Static structure of the codebase. FuzzyTriangleNumber holds three floats (lower bound, peak, upper bound) and calculates its centroid. ExpertOpinion wraps an expert ID with their fuzzy assessment. Comparison operators use the centroid, which is what makes the opinions sortable for the median.

BeCoMeCalculator does the actual work: arithmetic mean, median, and the combined compromise. Results go into BeCoMeResult, a Pydantic model with the final fuzzy number plus intermediate values and error metric.

Composition arrows show containment (ExpertOpinion contains FuzzyTriangleNumber). Dashed arrows show dependencies (calculator uses opinions, creates results).

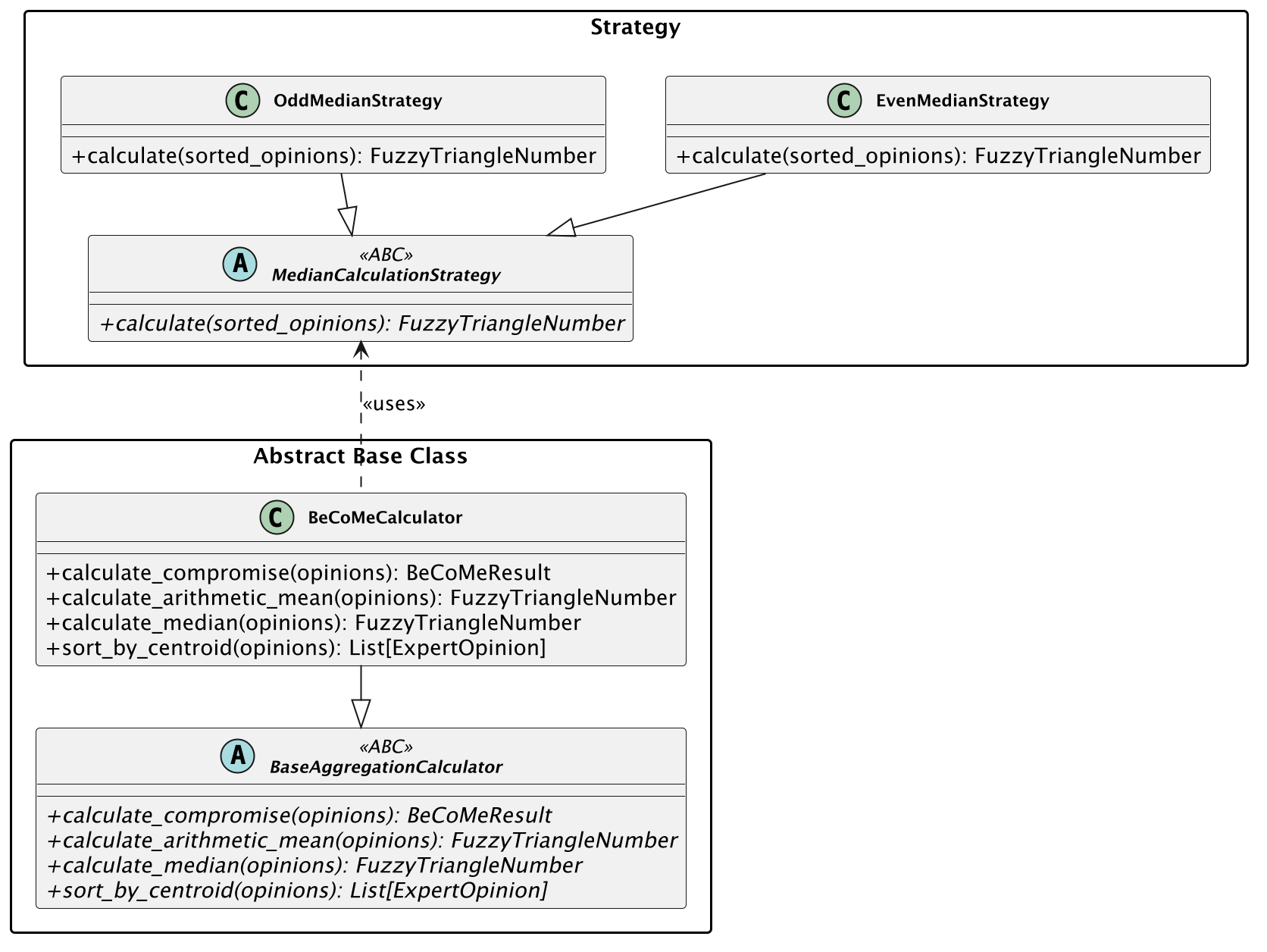

Class diagram: patterns

Class Diagram: Patterns

The same classes seen through the two structures that shape them. MedianCalculationStrategy has one concrete subclass per parity: OddMedianStrategy takes the middle opinion, EvenMedianStrategy averages the two around the middle, and BeCoMeCalculator picks between them at run time instead of branching inline.

BaseAggregationCalculator is the abstract side. All four of its methods are abstract and it sequences none of them, so what it fixes is the interface any second aggregation method would have to meet, not a shared implementation.

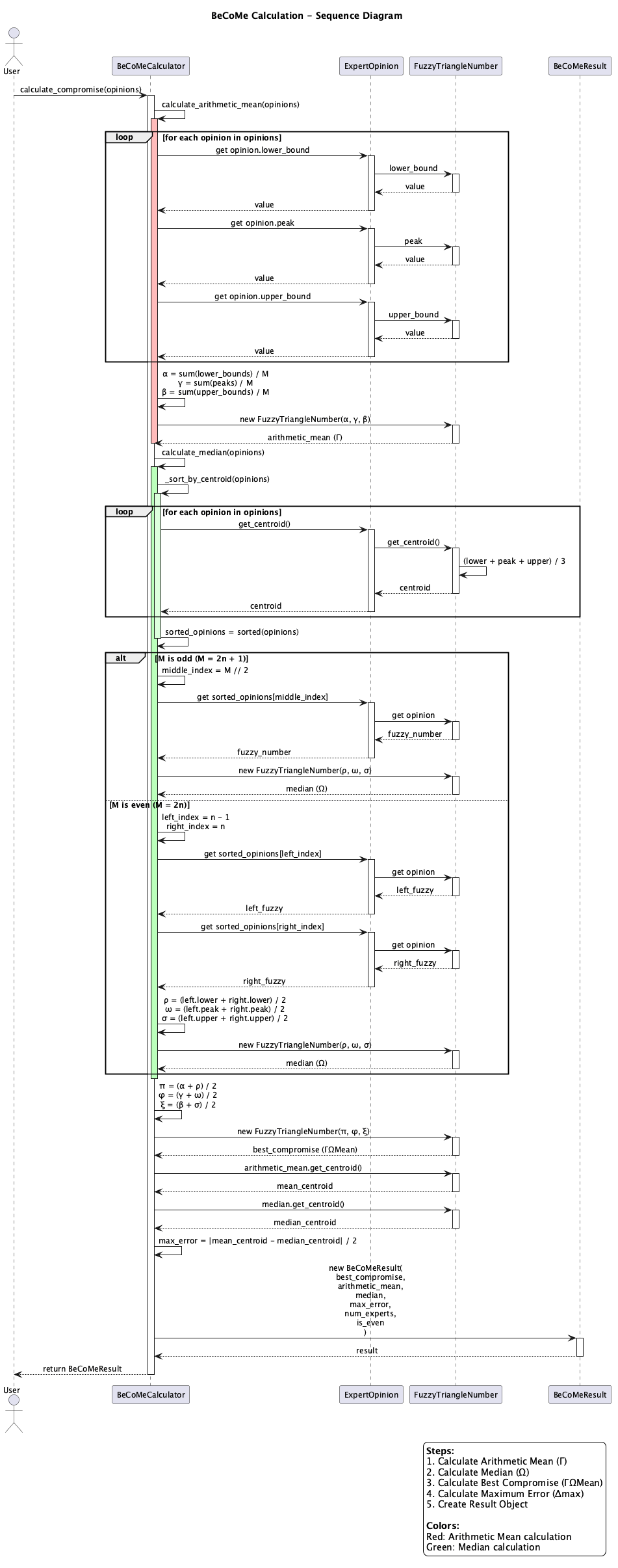

Sequence diagram

Sequence Diagram

Message flow during calculate_compromise(). The calculator first loops through opinions to compute the arithmetic mean: it averages lower bounds, peaks, and upper bounds separately. Then it sorts opinions by centroid and picks the middle element (or averages two middle elements for even counts).

With both Γ and Ω computed, the calculator averages them component-wise to get ΓΩMean. Maximum error is half the distance between mean and median centroids. Everything gets packed into BeCoMeResult and returned.

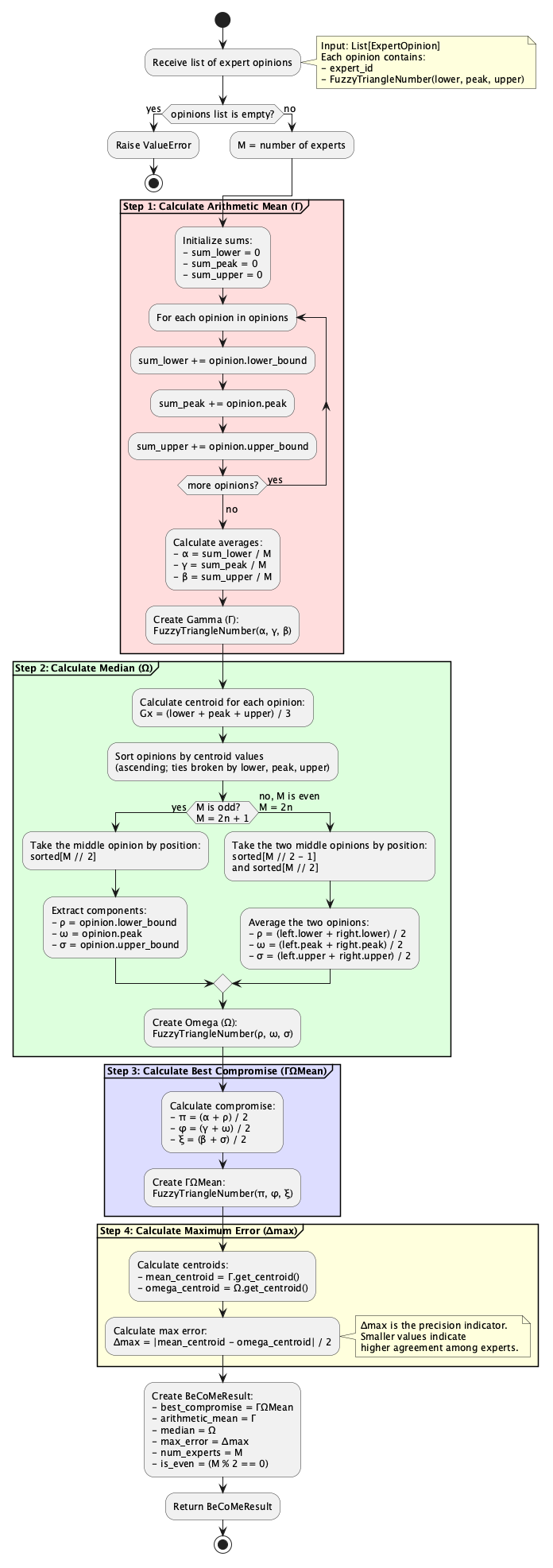

Activity diagram

Activity Diagram

Algorithm flow with decision points. The odd/even branch in median calculation is the main fork: odd counts take the middle element directly, even counts average two neighbors. Color-coded partitions separate the four calculation phases: mean (red), median (green), compromise (blue), error (yellow).

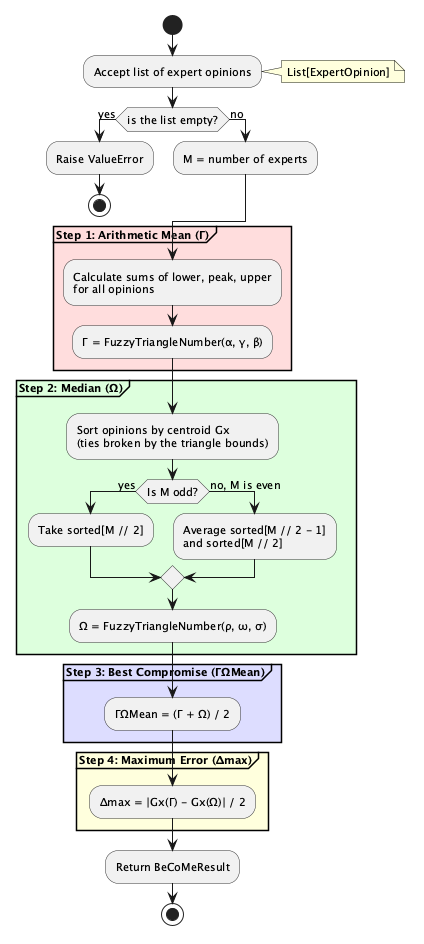

Activity diagram: simplified

Activity Diagram: Simplified

The same flow as above with the per-component arithmetic collapsed into one step per phase. Read this one first, and the full version when you need the exact operations.

Regenerating diagrams

Source files live in diagrams/puml/. To regenerate PNGs:

uv run python docs/uml-diagrams/generate_diagrams.py

Requires plantuml CLI installed locally (brew install plantuml).
